Microscopic 3D Topography & Analysis

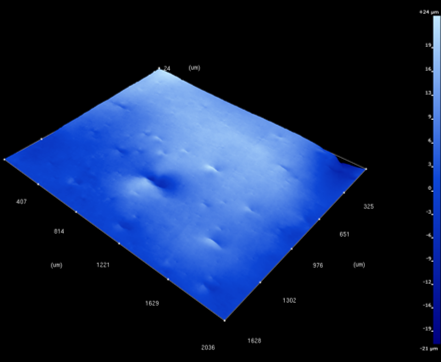

3D topographic reconstruction3D topographic reconstruction

nSpec 3D uses a variety of customizable tools to map surface topographies and characterize the properties of composite materials. Nanotronics tools measure particle size and dispersion, detect surface features, and analyze problematic processing defects.

2D sample scan of surface topography2D sample scan of surface topography
2D sample scan of surface topography

In order to measure filler dispersion, Nanotronics images the presence of agglomerates. nSpec®3D forms a composite image of the surface topography using multiple light vectors. A dispersion index quantifies the total volume of agglomerates on a sample surface. While 3D topography offers volumetric information and count, 2D analysis offers a bird’s eye view of a surface area.

The results of these two measurements provide insight into disagglomeration, dispersion, and the properties of the polymer matrix.

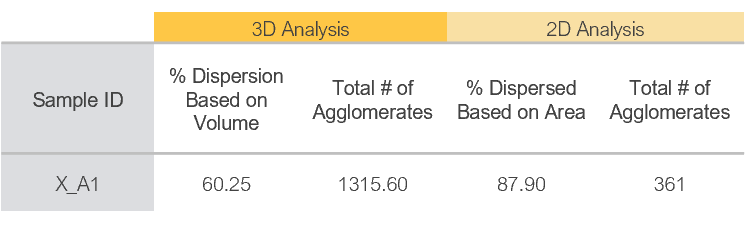

Graph of results comparing 3D and 2D analysisGraph of results comparing 3D and 2D analysis
